← Back to Canyon range Canyon Caravans · 21'6"

Off-Grid Classic Package

21'6" Bunk Van — 360 Off-Grid Package

The Canyon Classic with the exclusive 360 Off-Grid Package — 345Ah NZ Lithium, 3000W inverter, compressor fridge and the front locker setup with generator + BBQ slides.

Ask our team about the Off-Grid Classic Package

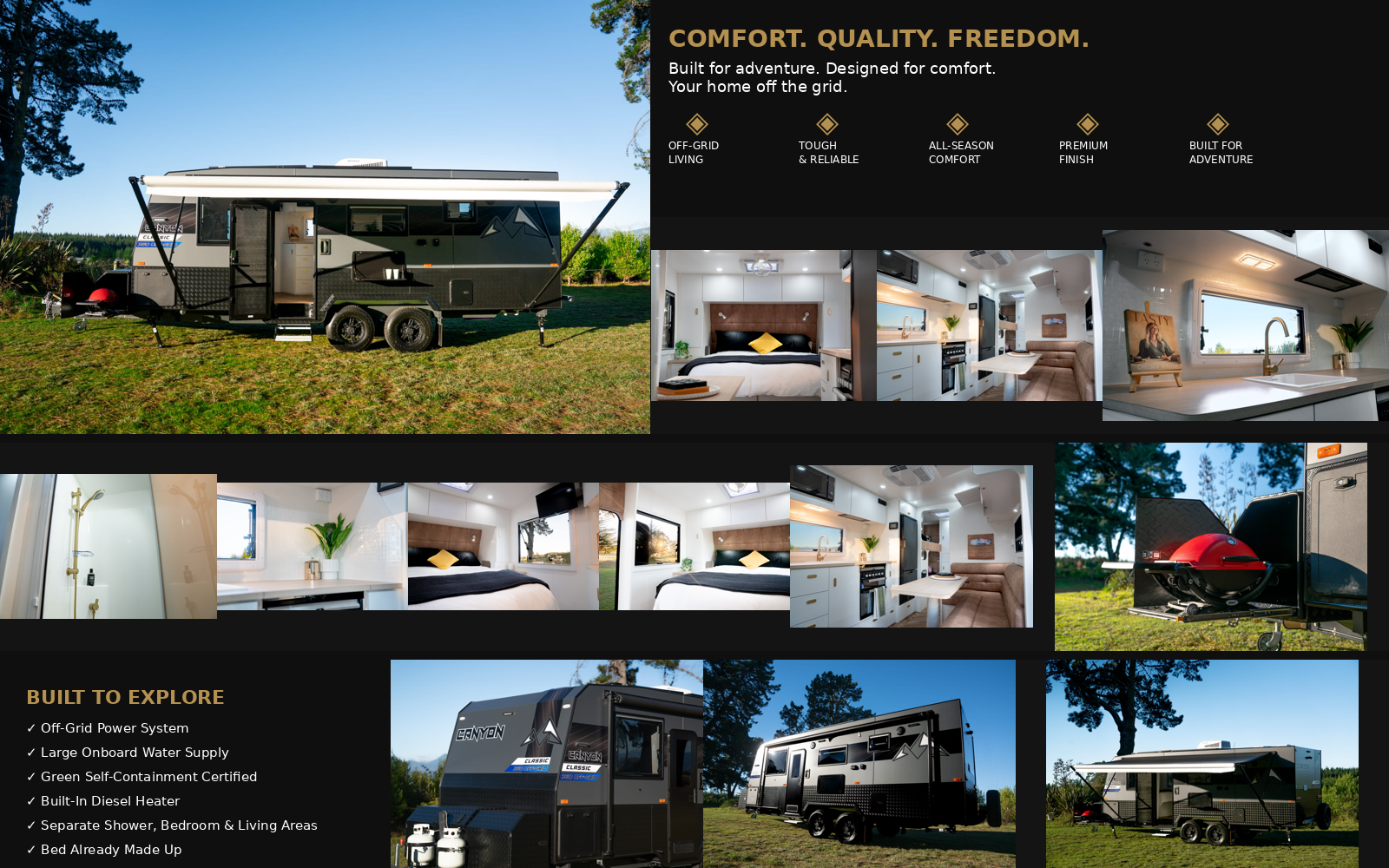

Off-Grid Classic Package showcase — exterior and interior gallery

Off-Grid Classic Package · exterior & interior showcase

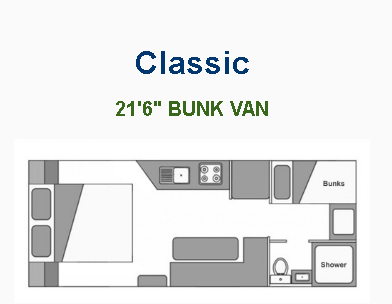

Off-Grid Classic Package floor plan

Illustration only
Off-Grid Classic Package floor plan

Weights

Tare
2450kg
ATM
3350kg
Ball
160kg
Payload
900kg

All weights approximate.

Full specification

What's included

Sleeping Quarters

  • Queen Island Bed 6'2" (lift-up with strut assist)
  • Inner spring mattress, niches both sides
  • Robes and bedside tables with storage
  • 2 or 3 bunk options 6'2" mattresses
  • Bunk option with internal & external storage hatch
  • 2 roof-mounted skylight hatches

Kitchen / Living

  • White sink with gold tap package, full-height splash back
  • Cupboards with piano hinges, overhead cupboards with double struts
  • Laminate bench tops, latched handles
  • Slide-out pantry
  • L-shaped leather-look lounge
  • One-piece floor

Appliances & Entertainment

  • 220L compressor fridge/freezer
  • 3 gas + 1 electric burner stove with oven & griller
  • Belaire 3500 reverse cycle air conditioner
  • Range hood, microwave, washing machine
  • Swift 2-way gas/electric hot water
  • 24" 12V HD LED TV, stereo, 2× internal + 2× external marine speakers

Ensuite

  • One-piece shower with chrome flick mixer
  • Ceramic basin & vanity with storage
  • Thetford cassette toilet, 12V fan & hatch

Electrical — 360 Off-Grid Package

  • 1× 345Ah NZ Lithium battery
  • 3000W NZ Lithium pure-sine inverter
  • Over 1000W roof-mounted solar array
  • Victron MPPT solar regulator + Bluetooth monitoring
  • AU Focus diesel heater
  • LED down, reading, awning and tunnel boot lights
  • 240V & 12V/USB points throughout, external 240V & 12V sockets
  • LED tail, side marker, clearance lights, 12-pin plug, Anderson plug, smoke alarm

Plumbing

  • 2× 95L fresh + 1× 95L grey water tank
  • 2× 9kg gas bottles, lockable fillers
  • 12V water pump, external gas bayonet, A-frame tap

External & Chassis

  • Front locker setup with BBQ slide-out (exclusive to the Off-Grid Package)
  • Aluminium cladding, double-glazed windows
  • Front tunnel boot, A-frame tool box, picnic table, roll-out awning
  • Checker plate front, back & sides
  • 6" chassis with 2" lift, extended heavy duty 6" draw bar
  • 15" alloys, twin axle Al-ko Roller Rocker
  • 10" electric brakes + breakaway
  • 4× stabilisers, spare wheel, mud flaps

All vans are built on a structural-grade, highly water-resistant floor with one-piece vinyl covering. Walls use solid Meranti hardwood or CNC-cut pine framing with aluminium or optional composite cladding. Walls and roof are fully insulated.

Explore other Canyon models

21'6"
Classic
21'6" Bunk Van
22'
Glacier
22' Bunk Van
18'2"
Viking
18'2 Caravan
20'6"
Valley
20'6 Touring Van
22'
Summit
22' Caravan

Ask our team

Interested in the Off-Grid Classic Package?

Pop in to the Hope workshop or send our team a note — drop your details and we'll be in touch.

sales@zoom360rv.co.nz

Leave a message

Contact our team

Goes straight to the Zoom360RV inbox.

Opens Gmail in a new tab, pre-filled to sales@zoom360rv.co.nz.

Glacier

22' BUNK VAN

All Pictures shown are for illustration purpose only.

GLACIER FLOOR PLAN

Glacier Floorplan

SLEEPING QUARTERS

  • Queen Island Bed 6’2″ (Lift-Up with Strut Assist) and Storage Underneath
  • Inner Spring Pillow Top Mattress
  • Niches Both Sides of Queen Bed
  • Robes and Bed Side Tables with Storage
  • 2 Bunks or 3 Bunk Option 6’2″ Mattress
  • 2 Bunk Option with Storage Underneath Internal and External Hatch
  • Dividing Curtain in Bunk Section
  • 2 Roof-Mounted Skylight Hatches

KITCHEN / LIVING

  • Stainless Steel Sink
  • Full Height Splash back
  • Cupboard Doors available in a wide range of colours
  • Piano Hinges in all Cupboards
  • Overhead Cupboards With Piano Hinges And Double Struts
  • Kitchen Laminate Bench Tops
  • Latched Handles in a Selection of Black or Silver
  • Draws Slide on Rollers and Runners
  • Stove Recessed Under Hinged Bench Top
  • L-shaped Lounge Leather Look (Option to Make into Extra Bed)
  • Magazine Holder

APPLIANCES AND ENTERTAINMENT

  • 224Ltr Thetford Compressor Fridge/Freezer
  • 3 Gas & 1 Electric burner on Stove top with Oven & Griller
  • Air Conditioner Reverse Cycle Low Profile
  • Range-Hood Flush mounted
  • Microwave Oven
  • Washing Machine
  • Hot Water System 2 Way Gas/Electric Stainless Steel Swift
  • LARGE 24″ 12V HD LED TV
  • Stereo Head Unit
  • 2 x Internal Speakers
  • 2 x External Speakers Marine Grade

ENSUITE

  • Separate One Piece Shower With Chrome Flick Mixer & Adjustable Shower Head
  • Ceramic Basin with Chrome Flick Mixer
  • Vanity with Cupboard for Storage
  • Toilet Thetford with Cassette
  • 12v Fan and Hatch in Shower

ELECTRICAL

  • BMPRO Plus 35 – ll HA Battery Management System
  • LED Down Lights Throughout Interior
  • LED Reading Lights in Bedroom & Living
  • LED Door Grab Handle
  • LED Light on Front and Rear of Van
  • LED Light in Tunnel Boot
  • LED Lights External in Awning x 2
  • 100Ah Deep Cycle Batteries x 2
  • Battery Charger
  • 170w Solar Panels x 2
  • Solar Regulator
  • 240V Double Power Points Throughout Including Niches
  • 12v or USB Points Throughout
  • Gauges for Water tank
  • External 240v Power Point
  • External 12V Socket
  • LED Tail Lights
  • LED Side Markers & Clearance Lights
  • Trailer Plug Flat 12 Pin
  • Anderson Plug
  • TV Points Internal and External
  • Smoke Alarm

PLUMBING

  • 2 x 95 Litre Water Tanks
  • 1 x 95 Litre Grey Water Tank
  • 2 x 9kg Gas Bottles
  • Mains Pressure Limiter on Inlet
  • Lockable Water Fillers on Tanks
  • 12V Water Pump
  • External Gas Bayonet
  • Tap on A-Frame

EXTERNAL

  • Choice of Composite or Aluminium Cladding
  • Entry Door & Fly Screen
  • Double Glazed Windows, With Block Out Blind & Fly Screen
  • Large Front Tunnel Boot With Dual Access
  • Tool Box On Front of “A” Frame
  • Checker Plate on Front and Back
  • Checker Plate on Sides
  • Picnic Table
  • Roll Out Awning

CHASSIS

  • Chassis 6″ With 2″ Lift
  • Extended Heavy Duty 6″ Draw Bar
  • 15″ Alloy Wheels with 235/75/15 ALL TERRAIN TYRES
  • Twin Axle, Al-ko Roller Rocker Rated at 3.2 Tonnes
  • 10” Electric brakes
  • Break away Brake System
  • 3-Arm Rear Bumper Bar
  • Jockey Wheel on A-Frame
  • 4 x Quick Drop Down Adjustable Corner Stabilisers
  • Aluminum Pull-Out Step
  • Spare Wheel
  • Mud Flaps

Weights

TARE

2550KG (APPROX)

ATM

3350KG (APPROX)

BALL

160KG (APPROX)

PAYLOAD

800KG (APPROX)

All Our Vans Are Constructed with a Floor That is Structural Grade & Highly Water Resistant and Covered with a One Piece Vinyl Floor Covering with a Colour of Your Choice, The Walls are Constructed with Solid Meranti Hard Wood Timber Frame or CNC cut pine With Aluminium Cladding or Optional Composite, All Walls and Roof Fully Insulated.
